Wooden Fire Doors, Fire Rated 60/90/120 Min | Packsound
Wooden Fire Doors are timber based door assemblies engineered with a fire resistant core, intumescent seals and fire rated hardware to stop flames and smoke from moving between rooms for a fixed period of time, commonly 30, 60, 90 or 120 minutes. They look like a standard wooden door but are tested and certified under IS 3614 to hold a fire rated door opening during a real fire, giving occupants extra time to evacuate and giving fire fighters extra time to respond.

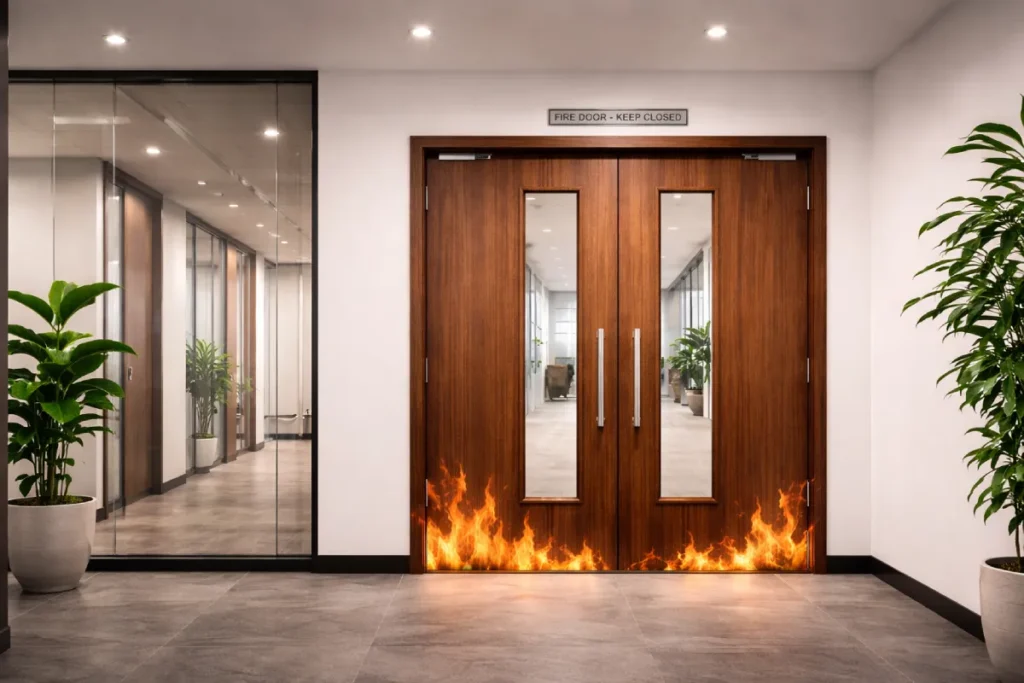

SonicGuard™ Wooden Fire Doors: Fire-Rated Safety with Acoustic Insulation
SonicGuard™ Wooden Fire Doors are engineered to deliver superior fire resistance, acoustic insulation and architectural elegance in one integrated solution. Designed for modern commercial and residential environments, these fire-rated wooden doors provide critical protection against fire spread while also minimizing sound transmission between spaces. With a combination of robust core construction, precision sealing systems and premium wood finishes, SonicGuard™ doors ensure safety, privacy and aesthetic excellence.
In today’s buildings, compliance with fire safety standards is non-negotiable. At the same time, architects and designers demand materials that enhance interior aesthetics. SonicGuard™ Wooden Fire Doors meet both requirements by offering certified fire resistance along with elegant wood veneer finishes. These doors are ideal for offices, hotels, hospitals, educational institutions and high-end residential projects where safety and design must coexist.
Built using advanced fire-resistant cores and intumescent sealing technology, these doors automatically respond to high temperatures by sealing gaps and preventing the spread of flames and smoke. In addition, their dense core structure provides excellent acoustic insulation, making them a dual-purpose solution for fire safety and noise control.
| Specification | Detail |
|---|---|
| Core | Multi layer fire resistant board, engineered for FD30 to FD120 |
| Thickness | 40 to 70 mm based on rating chosen |
| Finish | Teak, oak, walnut veneer or laminate |
| Frame | Timber or metal, with intumescent seal channel |
| Seals | Intumescent strip plus smoke seal gasket |
| Acoustic | STC 30 to 45+ on fire rated core |
| Hardware | Fire certified hinges, closer, lock set. |
| Benefit | Why It Matters |
|---|---|
| 🔥 Fire containment | Holds back flame and smoke for the rated duration |
| 🛡️ Dual protection | Fire resistance plus sound insulation in one door |
| 🎨 Aesthetic finish | Real veneer look, no compromise on interior design |
| ⏱️ Evacuation time | Buys occupants and fire teams critical extra minutes |
| 📋 Code compliance | Meets IS 3614 requirements for fire NOC approval |
| 🏗️ Long service life | Dense core resists warping better than hollow doors |
| ⚙️ Customisable | Sizes, finishes and ratings built to project drawings |
| Application | Typical Use |
|---|---|
| Corporate offices | Cabins, server rooms, escape corridors |
| Hotels | Guest room entry doors, service corridors |
| Hospitals | ICU, OT corridors, patient privacy zones |
| Schools | Labs, auditoriums, staircase enclosures |
| High-rise residential | Flat entry doors, refuge floor lobbies |
| Industrial units | Compartmentation between fire zones |
| Malls and airports | Back-of-house and public escape routes |
| Step | Action |
|---|---|
| 1. Site survey | Check opening size, wall type and required fire rating |
| 2. Frame fixing | Anchor the fire rated frame square and plumb |
| 3. Leaf hanging | Mount the door leaf on fire rated hinges |
| 4. Seal fitting | Fit intumescent strip and smoke seal around the frame |
| 5. Hardware fitting | Install fire rated lock, closer and handle set |
| 6. Gap check | Confirm perimeter and threshold gaps meet IS 3614 limits |
| 7. Final test | Test self-closing action and full latch engagement |
| Myth | Reality |
|---|---|
| Wooden doors cannot be fire rated | Certified cores make wood fire doors match steel ratings |
| Any solid wood door is fire safe | Only IS 3614 tested doors carry a valid fire rating |
| Fire doors cannot look premium | Veneer finishes give full aesthetic freedom |
| Fire rating and soundproofing conflict | Dual-seal design delivers both performance targets |
| Painting voids the fire rating | Approved paint systems do not affect certified rating |
Acoustic Performance
SonicGuard™ Wooden Fire Doors provide effective sound insulation alongside fire protection. The dense, multi-layered core acts as a barrier to sound transmission, reducing noise transfer between spaces. With STC ratings ranging from 30 to 45+, these doors are capable of blocking common noise such as speech, office activity and moderate ambient sound.
Also Check: Wooden Acoustic Doors. The sealing system plays a critical role in acoustic performance. By eliminating gaps around the door frame, it prevents sound leakage and enhances overall insulation. When combined with acoustic wall systems, these doors contribute to a fully controlled acoustic environment.
Technical Data Sheet (TDS)
| Parameter | Value |
|---|---|
| Product Name | SonicGuard Wooden Fire Doors |
| Door Leaf Thickness | 40 mm to 70 mm |
| Fire Rating | FD30 / FD60 / FD90 / FD120 (30, 60, 90, 120 minutes) |
| Core Material | Mineral board, gypsum based core, vermiculite board or engineered solid core |
| Test Standard | IS 3614:2021 (also referenced against BS 476 and EN 1634) |
| Acoustic Rating | STC 30 to STC 45+ |
| Facing Material | Teak, oak, walnut veneer, laminate or paint finish |
| Frame Options | Timber frame or metal frame with intumescent lining |
| Hardware | Fire rated hinges, closers, locks and smoke seals |
| Standard Sizes | Custom, built to opening (single and double leaf) |
| Glazing | Fire rated vision glass, optional |
SonicGuard™ Wooden Fire Doors FAQ
Yes, when IS 3614 tested, the core and seals genuinely delay fire and smoke spread.
Not recommended, incorrect frame gaps or hinge fixing can void the certified fire rating.
The dense fire-resistant core adds weight, which is necessary for the rating to hold.
Yes, dense cores like SonicGuard give STC 30 to 45+ alongside fire protection.
Quality veneer sealing and edge banding protect the core similarly to any premium wood door.
Most residential fire NOCs accept FD30, but corridors often require FD60 or higher.
No, fire rating comes from certified core construction, not from adding seals later.
Yes, a working self-closing device is mandatory for the fire rating to be valid.
They are generally used interchangeably, both describe IS 3614 tested, timed fire protection.
Wooden fire doors are preferred in hotels for matching interior finishes without losing rating.
