If you have been researching soundproofing solutions for your home theatre, recording studio, office partition, or industrial facility, you have almost certainly landed on MLV sound damping as a top recommendation. And for good reason. A Mass Loaded Vinyl Sheet is one of the few materials that combines flexibility, high density, and practical installation into a single product that genuinely blocks airborne noise.
But here is the problem: most articles about MLV repeat the same surface-level information. They tell you what it is, give you a basic STC chart, and send you on your way. What they miss are the installation edge cases, the material science behind why it actually works, the scenarios where it will disappoint you, and the insider knowledge that experienced acoustic consultants apply on real projects.
This guide covers all of it.
What Is MLV Sound Damping and How Does It Actually Work?
MLV sound damping refers to the use of Mass Loaded Vinyl as a dense, limp noise barrier membrane inside walls, floors, ceilings, and mechanical enclosures. The material was first developed in the 1960s as a safer and more flexible alternative to lead sheeting, and it has remained the gold standard for flexible sound barrier applications ever since.
A Mass Loaded Vinyl Sheet is manufactured by combining two core components: polyvinyl chloride (PVC) and a dense filler material, typically calcium carbonate or barium sulphate. The result is a viscoelastic material, meaning it behaves simultaneously like an elastic solid and a viscous fluid when subjected to vibration.
This matters because of a principle called the Mass Law in acoustics: the more mass per unit area a barrier has, the better it resists sound transmission. Every doubling of surface mass improves sound isolation by approximately 6 dB. MLV achieves a high mass-to-thickness ratio that rigid materials like concrete or brick cannot replicate at thin gauges, and that lighter materials like foam simply cannot achieve at all.
The key distinction between MLV and acoustic foam is critical and frequently confused:
- Acoustic foam and panels absorb sound energy within a room, reducing echo, reverberation, and flutter. They improve how a room sounds internally.
- A noise barrier membrane like MLV blocks sound from travelling between spaces. It improves how much sound passes through a wall, floor, or ceiling.
If your neighbour’s music is penetrating your wall, foam panels on your side will do almost nothing. A sound barrier sheet inside the wall assembly is what reduces transmission.
The Science of Why a Limp Mass Barrier Outperforms Rigid Materials
Most people assume that stiffer and harder equals better at blocking sound. This is one of the most persistent misconceptions in acoustic practice, and it causes expensive installation mistakes.
A rigid material like steel or hard plastic has natural resonant frequencies. When sound at those frequencies hits the barrier, the material rings like a bell, actually amplifying transmission at those specific frequencies. This is called coincidence dip, and it is measurable in lab testing.
A noise barrier membrane made from Mass Loaded Vinyl is deliberately limp and non-resonant. Because it has no structural stiffness, it has no coincidence frequency at typical audible ranges. It absorbs vibration by converting kinetic energy into heat through internal friction within its viscoelastic structure, a process called constrained layer damping.
This is why an acoustic insulation sheet of MLV at 1 lb per square foot outperforms a rigid plastic sheet of similar thickness in real-world wall assemblies. The limpness is a feature, not a flaw.
Practical implication: When sandwiching MLV between drywall layers, leaving it slightly loose rather than rigidly clamped improves its performance. A sheet of MLV that is over-fastened and pressed completely flat loses some of its limp mass behaviour and behaves more like a rigid membrane, which reduces its isolation performance at mid-range frequencies.
Where MLV Sound Damping Delivers Its Best Results
A sound barrier sheet performs best in specific applications. Understanding these helps you deploy your budget correctly rather than spreading MLV across surfaces where it will have limited impact.

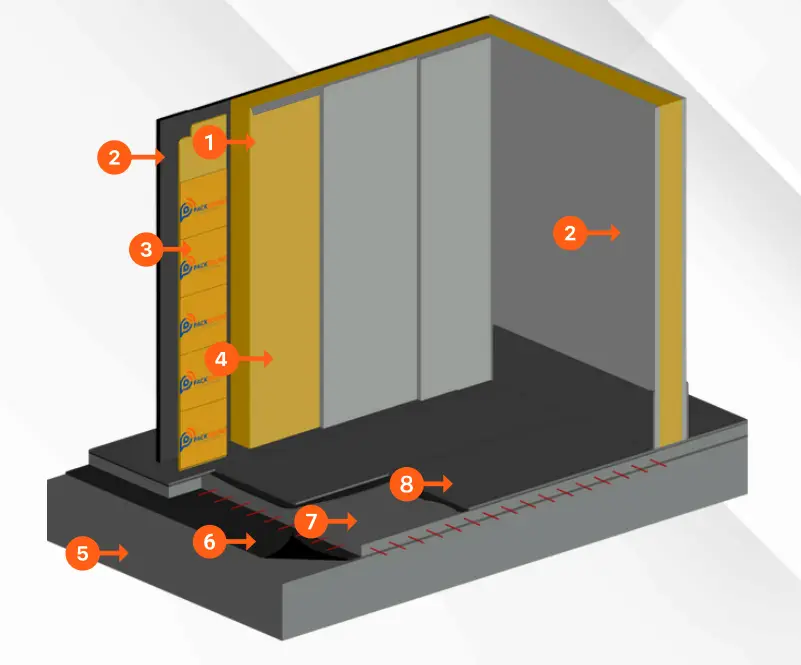

Walls with Stud Cavities Installing MLV between two layers of drywall in a standard stud wall is one of the most effective residential and commercial applications. The ideal sequence is: stud frame, first drywall layer, MLV sheet (stapled or screwed loosely to studs), second drywall layer with resilient channels or damping compound between the MLV and outer drywall. This assembly can push STC ratings from a typical 33 (bare drywall) to above 50 when done correctly.
Pipe and Duct Wrapping HVAC ducts and plumbing pipes are notorious flanking paths: surfaces that bypass your carefully constructed wall isolation. Wrapping ducts with an acoustic insulation sheet of MLV, secured with acoustic tape at all seams, is standard practice in commercial mechanical rooms and recording studios. The improvement in transmitted mechanical noise can be dramatic.
Floor Underlayment Under floating timber floors, laminate, or carpet, a Mass Loaded Vinyl Sheet provides a combination of impact and airborne noise reduction. It is heavier and more effective than standard foam underlayment. In multi-storey apartments and commercial buildings, floor-borne impact noise (footfall, furniture scraping) is frequently the most complained-about noise issue, and MLV as an underlayment layer directly addresses this.
Automotive and Marine Applications Products like Second Skin Luxury Liner are MLV-based materials specifically engineered for vehicle cabins, where the noise barrier must conform to complex curved surfaces, resist heat, and tolerate vibration. The automotive sector uses MLV extensively in door panels, boot liners, and firewall treatments.

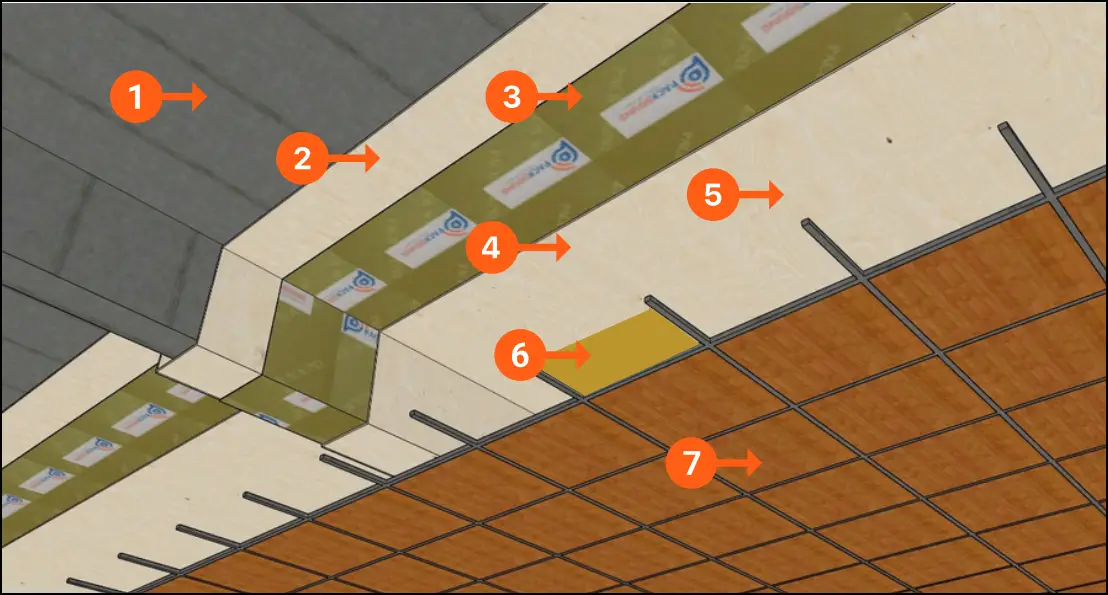

Industrial Enclosures Generator enclosures, compressor rooms, and server farm panels all use MLV as the primary mass layer in composite panel assemblies. In these contexts, the noise barrier membrane is typically combined with an absorptive inner layer (rockwool or melamine foam) to address both transmission and internal reverberation simultaneously.
How to Install Mass Loaded Vinyl Sheet: The Professional Approach
Most DIY guides tell you to staple it up and cover it. Professional acoustic consultants follow a more systematic process.
Step 1: Calculate Your Required Coverage Measure all surfaces in square feet or square metres. Do not forget to account for the ceiling and floor in a full-room treatment. Gaps are the enemy of soundproofing: a 1% gap in a barrier can reduce its effective isolation by 10 dB or more.
Step 2: Choose the Right Density MLV is available in 0.5 lb, 1 lb, and 2 lb per square foot weights. The 1 lb version is standard for most residential and commercial wall and floor applications. The 2 lb version is used in heavy industrial settings or wherever maximum mass per panel is required. Using 0.5 lb to save cost reduces your STC improvement proportionally.
Step 3: Overlap and Seal All Seams Sheets should overlap by at least 2 inches at every joint. Seal all seams with mass loaded vinyl tape or acoustic mastic. Every unsealed seam is a flanking path that degrades the barrier’s performance. This step is where most DIY installations lose 5 to 8 dB of the potential improvement.
Step 4: Maintain Decoupling Do not rigidly clamp the MLV to the substrate on all edges simultaneously. Allow it to hang or flex slightly. In wall assemblies, the MLV works best when the outer drywall layer is attached to resilient channels rather than directly to the MLV, maintaining a micro-decoupling gap.
Step 5: Address Flanking Paths MLV in a wall does nothing if sound bypasses it through the floor junction, ceiling junction, electrical boxes, or recessed fixtures. In professional installations, all penetrations are sealed with acoustic putty pads, and all junction gaps are filled with acoustic sealant before the final layer goes on.
When MLV Sound Damping Will Disappoint You: Edge Cases and Hidden Limits
This is the section most competitors skip. Here are the scenarios where MLV underdelivers and what to do about it.
Low-Frequency Bass and Sub-bass The Mass Law has diminishing returns at very low frequencies. A standard 1 lb MLV installation will not provide meaningful isolation of 40 Hz to 80 Hz bass, the frequency range produced by subwoofers, bass guitar amplifiers, and heavy machinery. At these frequencies, room-within-room construction with complete structural decoupling is required. Expecting MLV alone to stop a home theatre subwoofer from penetrating a concrete floor slab is unrealistic.
Structurally Transmitted Impact Noise MLV is an airborne sound barrier. When noise is transmitted through the building structure itself (footfall vibration, machinery vibration coupled to a concrete slab), the primary solution is isolation mounts, floating floors, and neoprene pads, not a noise barrier membrane. MLV under carpet reduces impact noise somewhat but is not a substitute for proper floating floor construction in high-impact scenarios.
Thin Partition Walls Without Proper Assembly Applying MLV to the surface of an existing single-layer drywall partition without any internal decoupling will give modest improvement, typically 3 to 5 STC points. If you need STC 50 or above, surface application alone is insufficient. The wall assembly, including decoupled framing, cavity insulation, and correctly installed MLV within the assembly, all matter together.
Outdoor Noise at Very High Frequency High-frequency outdoor noise such as birdsong, distant traffic above 2 kHz, and HVAC fan noise is relatively easy to block with standard drywall. MLV adds value but is not always the bottleneck in these scenarios. Your windows, gaps around doors, and ventilation penetrations will almost always be the primary flanking paths in residential buildings.
Myth vs Reality: MLV Sound Damping
|
Myth |
Reality |
|
More MLV layers always equals better results |
Beyond 2 lb/sqft, mass law returns diminish and decoupling matters more |
|
MLV absorbs sound like foam |
MLV blocks transmission; foam absorbs room echo. Entirely different mechanisms |
|
A single layer stops all noise |
STC 50+ requires correct assembly: mass, decoupling, and sealing together |
|
Stiff equals better soundproofing |
Limp mass performs better; rigidity causes resonance and coincidence dips |
|
MLV works equally for all frequencies |
Below 80 Hz, structural decoupling outperforms any barrier material |
|
Acoustic foam on walls replaces MLV |
Foam treats room acoustics; MLV blocks inter-room noise. Neither replaces the other |
Second Skin Luxury Liner and Other Premium MLV Variants: What You Need to Know
Second Skin Luxury Liner is among the most recognised premium MLV products in the automotive and residential soundproofing market. Unlike generic MLV rolls, it incorporates a closed-cell foam or foam-and-foil backing layer that provides both the mass barrier function and a secondary absorption layer in a single sheet.
The practical advantage is that it reduces installation steps in confined spaces like vehicle doors, where applying separate barrier and absorption layers is difficult. The foam backing also acts as a thermal insulator, which is a useful secondary benefit in automotive applications.
For construction and architectural applications, standard MLV combined with a separate absorptive layer (rockwool, glass wool, or acoustic foam) typically offers better performance per unit cost than composite automotive products. The Second Skin Luxury Liner is optimised for the specific constraints of automotive interiors: curved surfaces, high temperatures, limited cavity depth, and vibration environments. Using it in a wall cavity is possible but not cost-optimal compared to construction-grade acoustic insulation sheet.

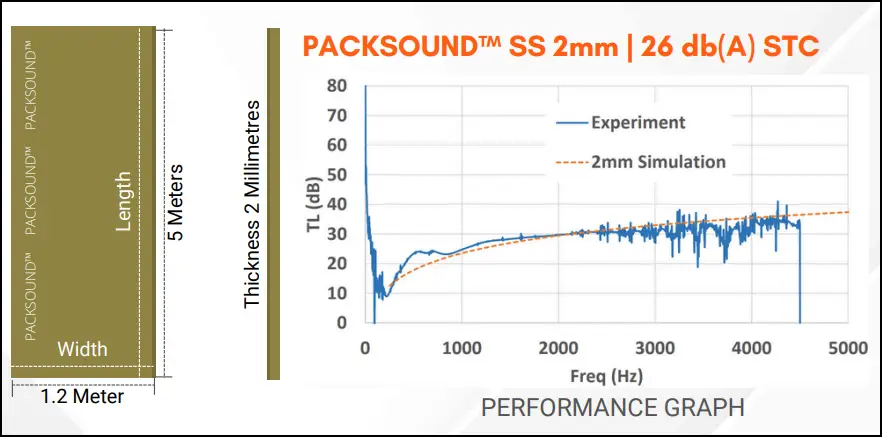

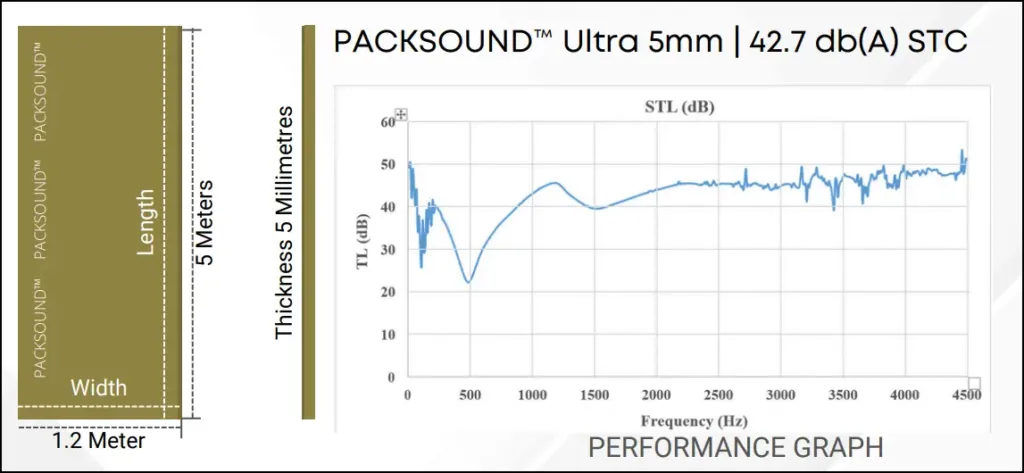

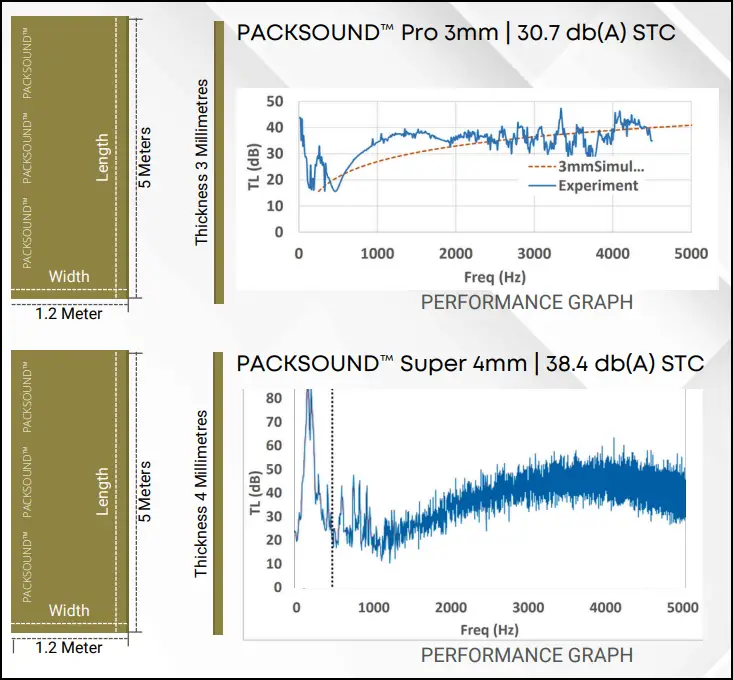

When selecting between MLV products, the specification that matters most is confirmed density in kg/m2 or lb/sqft, and whether the product has a certified STC rating from an accredited laboratory test. Many budget products are labelled as MLV but use lower density filler materials that significantly underperform relative to their weight. Always request the test report, not just the marketing claim.
The “It Depends” Decision Framework: Choosing MLV for Your Specific Scenario
Whether MLV is the right solution depends on several variables that most guides treat as universal.
Noise Type Determines the Strategy
|
Noise Type |
Primary Solution |
Role of MLV |
|
Airborne speech and music |
Mass barrier in wall/ceiling |
Core solution |
|
HVAC duct noise |
Duct wrapping |
Highly effective |
|
Low frequency bass (sub-80 Hz) |
Room decoupling |
Supporting layer only |
|
Impact noise (footfall) |
Floating floor system |
Underlayment contribution |
|
Structure-borne vibration |
Isolation mounts |
Minimal direct benefit |
Budget Allocation Principle In a typical wall treatment, the highest-impact investment sequence is: (1) sealing all gaps and penetrations with acoustic sealant, (2) adding mass with MLV or additional drywall layers, (3) introducing decoupling with resilient channels or clips. Most people do step 2 first and step 1 last, which is backwards. A perfectly installed MLV assembly with unsealed electrical boxes will underperform a standard drywall wall with all penetrations sealed.
Also Read: Acoustic Sound Panels
Industry Insider: What Acoustic Consultants Know That Blogs Usually Miss
Having delivered acoustic solutions across cinema halls, recording studios, corporate offices, and residential home theatres in India, here are the practical realities that textbooks and basic content rarely address.
The “Weak Link” Rule Dominates Everything A soundproofing system is only as good as its weakest point. A wall achieving STC 55 with one unsealed 10 mm gap around a cable penetration will perform no better than STC 35. Professional installers spend as much time on sealing and detailing as on the main barrier installation. For clients doing partial DIY installations, focusing obsessively on sealing edges, junction details, and penetrations will deliver more measurable improvement than doubling the MLV weight.
Flanking Transmission Is the Silent Failure Mode In apartments and commercial buildings, noise frequently bypasses walls entirely through the concrete slab, suspended ceiling plenum, or HVAC network. In these scenarios, even a perfectly installed acoustic insulation sheet in the wall cavity will provide disappointing results. A professional acoustic survey before specifying materials is not an upsell; it is how you avoid spending a significant budget on the wrong surfaces.
India-Specific Installation Challenge: Humidity and Adhesive Performance In high-humidity environments common across coastal and monsoon-affected Indian cities, the adhesive backing on some MLV products degrades over time. For Indian installations, mechanical fastening (staples, screws with washers) is more reliable than adhesive-only installation for wall applications. This is rarely mentioned in North American or European installation guides.
The Density Labelling Problem In the Indian market specifically, MLV and rubber-based damping sheets are sometimes sold interchangeably. True Mass Loaded Vinyl contains PVC combined with dense mineral filler. Rubber-based damping sheets (bitumen pads, butyl rubber sheets) have a different performance profile: they are better at constrained-layer damping of panel vibration but are less effective as standalone airborne noise barriers. Knowing which product you are specifying matters significantly for the application.
5 Frequently Asked Questions About MLV Sound Damping
Q1. Can I apply MLV directly over existing drywall without opening the wall? Yes, MLV can be surface-applied directly onto existing drywall. This approach typically adds 3 to 6 STC points, depending on the installation quality and whether you seal all edges with acoustic mastic. It is less effective than in-wall installation but is a viable option for rental properties or renovation projects where demolition is not feasible. Cover the surface-applied MLV with a second drywall layer, secured to the studs through the MLV, for the best result from this method.
Q2. Does MLV work for reducing noise from upstairs neighbours? MLV as a ceiling underlayment (installed below the floor above) is effective for reducing airborne noise such as conversation and music coming from upstairs. For impact noise like footfall and furniture moving, MLV alone is insufficient. The most effective solution for impact noise is a floating floor installed on the floor above, using isolation mats or neoprene isolators between the finished floor and the subfloor.
Q3. How thick should a Mass Loaded Vinyl Sheet be for home use? The 1 lb per square foot (approximately 5 kg/m2) standard is appropriate for most residential applications including home theatres, bedrooms, and home offices. The 2 lb version offers approximately 3 to 4 additional STC points but at double the material cost and significantly more installation weight. Unless you are dealing with loud mechanical noise or need STC above 55, the 1 lb version offers the best cost-to-performance ratio for homes.
Q4. Is MLV safe to use indoors and around children? Quality Mass Loaded Vinyl uses calcium carbonate or barium sulphate as the filler, both of which are inert and non-toxic in their cured form. Modern MLV products are also free from lead, which was used in earlier sound barrier products. Installed and enclosed within a wall assembly, MLV poses no health risk. Ensure any product you specify has relevant safety certifications, and check that the product is odourless when unrolled (off-gassing from low-quality PVC can be an issue with very cheap alternatives).
Q5. Can a single layer of MLV make a room completely soundproof? No. Complete soundproofing is an engineering outcome that requires an integrated system: structural decoupling of the room, mass in all six surfaces (four walls, floor, ceiling), sealed penetrations, and treated HVAC connections. MLV is a critical component in that system, but it does not function as a standalone complete solution. A single layer of 1 lb MLV in a correctly detailed wall assembly will deliver meaningful and measurable noise reduction, typically in the range of 6 to 12 STC points depending on the base wall construction, which is significant but not total isolation.
Where to Use MLV Sound Damping: Application Summary
|
Application |
Recommended MLV Weight |
Expected STC Improvement |
Key Installation Note |
|
Interior wall (stud frame) |
1 lb/sqft |
+8 to +14 STC |
Use resilient channels on outer layer |
|
Floor underlayment |
1 lb/sqft |
+4 to +8 STC |
Overlap seams, tape all joints |
|
Ceiling treatment |
1 lb/sqft |
+6 to +10 STC |
Mechanical fastening, seal perimeter |
|
HVAC duct wrapping |
1 lb/sqft |
Significant NR |
Overlap and tape all seams |
|
Pipe lagging |
0.5 to 1 lb/sqft |
Moderate NR |
Wrap tightly, no gaps at ends |
|
Automotive cabin |
MLV composite (e.g. Second Skin Luxury Liner) |
Context-dependent |
Adhesive backing, butyl edge sealing |
Final Word: Making MLV Sound Damping Work for Your Project
MLV sound damping is not magic, and it is not a complete soundproofing system by itself. It is the most versatile and practically deployable noise barrier membrane available for flexible, thin, and complex installation scenarios. When used correctly as part of a complete acoustic assembly that addresses mass, decoupling, absorption, and sealing, a Mass Loaded Vinyl Sheet delivers measurable, lasting, and professional-grade results.
The gap between a 4-STC improvement and a 14-STC improvement on the same budget almost always comes down to installation quality, sealing detail, and understanding which surfaces are actually transmitting your specific noise problem. Get those variables right, and MLV becomes one of the most cost-effective tools in an acoustic project.
For commercial projects in India including cinema halls, recording studios, corporate offices, and industrial facilities, professional acoustic survey and specification by an experienced acoustic consultant will consistently outperform even the best-quality DIY installation. The materials matter. The system they are built into matters more.
